一、概述 |

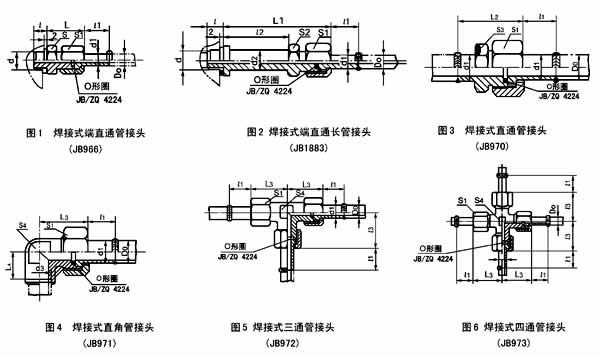

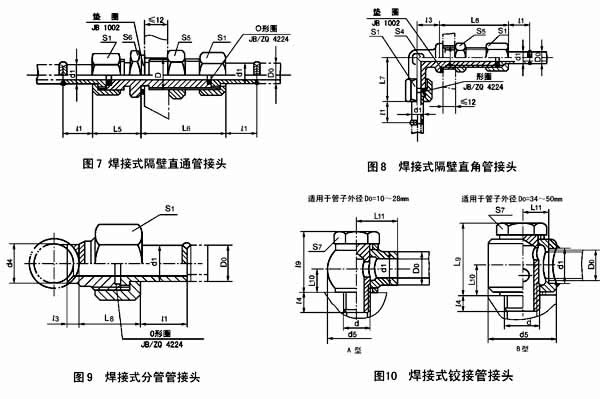

適用于以油為介質的管路系統用焊接式管接頭。公稱壓力為31.5MPa,工作溫度為-25~+80℃。 焊接式端直通管接頭、焊接式端直通長管接頭、焊接式直通管接頭、焊接式直角管接頭,焊接式四通管接頭,焊接式隔壁直通管接頭、焊接式隔壁直角管接頭、焊接式分管管接頭、焊接式鉸接管接頭的型式和尺寸按圖1~圖10 和表1的規定。 |
|
